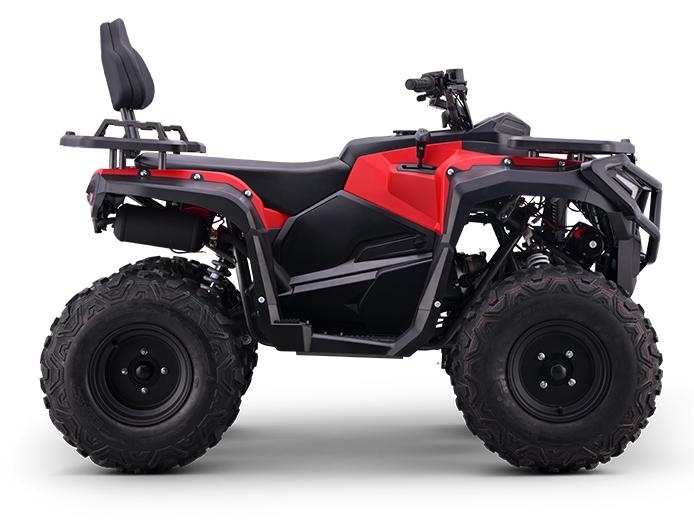

Hammer 200E

The Hammer 200E features a 196cc engine and lightweight frame, offering easy handling and excellent fuel efficiency. Hydraulic suspension and block-pattern tires deliver stable traction on gravel and light off-road terrain. With low maintenance requirements and dependable performance, it’s a practical option for riders seeking value and everyday usability.

  • Performance features
  • Parameters
  • Accessories
4
3
2
1

4

KEEP YOUR EYES ON WHAT MATTERS，WHETHER WORKING OR EXPLORING

3

Brighten tool kits, trail maps, or cargo zones with focused Illumination2

2

Brighten tool kits, trail maps, or cargo zones with focused Illumination

1

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Oil Cooling
Displacement177.3 cm3
Bore And Stroke62.5 mm x 57.4 mm
Compression Ratio10:1
Maximum HorsePower10 HP @ 7500 r/min
Maximum Torque11 NM @ 6000 r/min
Fuel SupplyCarburetor
Start System
Electric Start
TransimissionChain Drive


· Chassis

Front SuspensionDual A Arms Independent Suspension
Rear SuspensionSwing Arm
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires
23x7-10
Rear Tires22x10-10


· Dimensions / Capacity

LxWxH(mm)1700x1055x1095 mm
Wheelbase1150 mm
Ground Clearance275 mm
Maximum Speed60 km/h
Net Weight188 kg
Fuel Tank Capacity8 L
Maximum Load Capacity100 kg
40HQ60 Units
