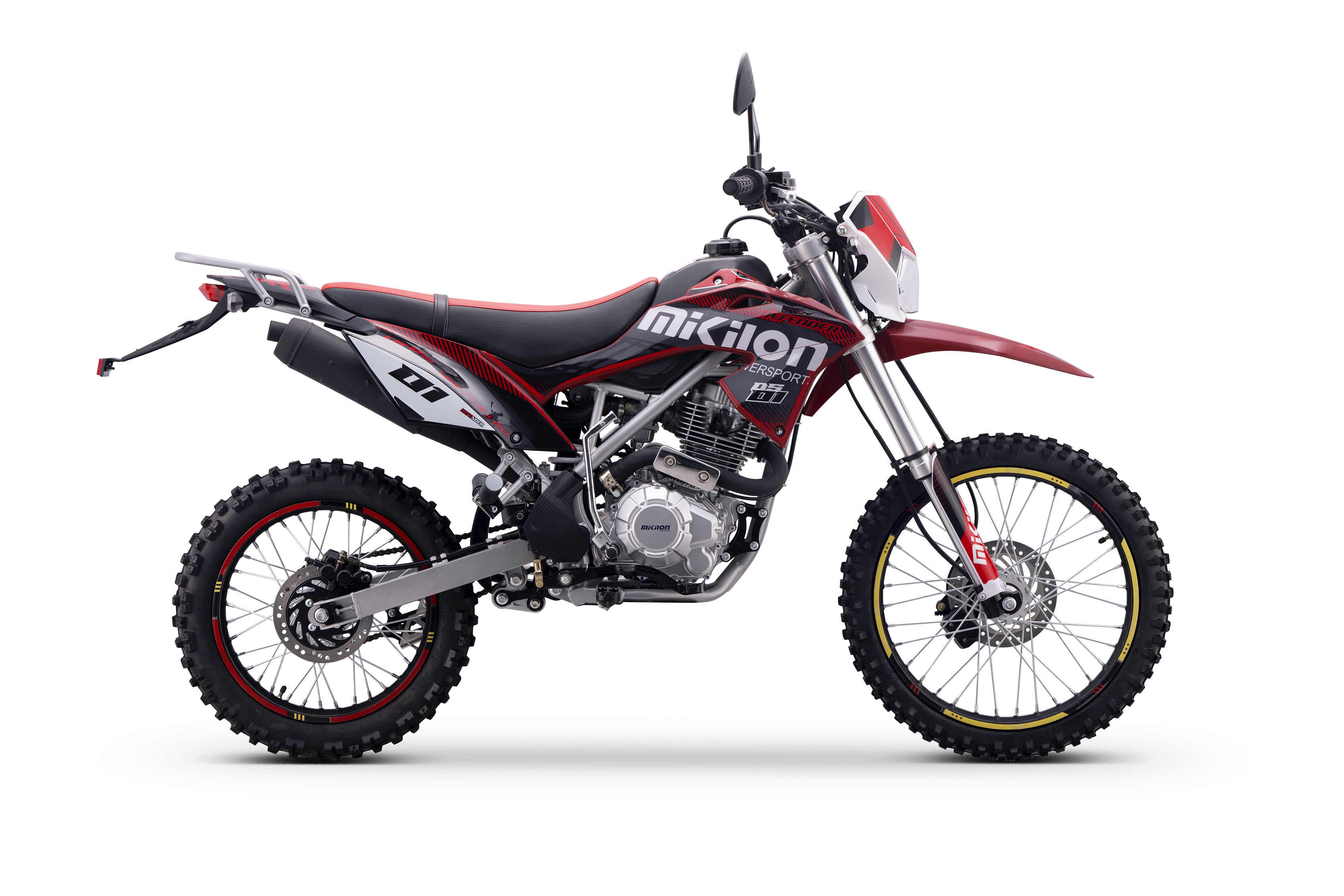

DS01 150

“Ride Freely, Go Wild — DS01 150, Born for Adventure.”

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Air Cooling
Displacement149.4 cm3
Bore And Stroke62 mm x 49.5 mm
Compression Ratio9.2:1
Maximum Power8.2 KW @ 8000 r/min
Maximum Torque10 NM @ 7500 r/min
CarburetorPZ27
IgnitionCDI
Start SystemElectric Start

· Chassis

Front Shock AbsorberInverted Non-Adjustable
Rear Shock AbsorberBuilt-In Airbag Non-Adjustable
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires70/100-19
Rear Tires90/100-16

· Dimensions / Capacity

LxWxH2080x810x1300 mm
Wheelbase1310 mm
Seat Height860 mm
Ground Clearance300 mm
Gear Ratio15:46
Fuel Tank Capacity6.5 L
Net Weight108 kg
Maximum Load Capacity100 kg
40HQ105 Units
