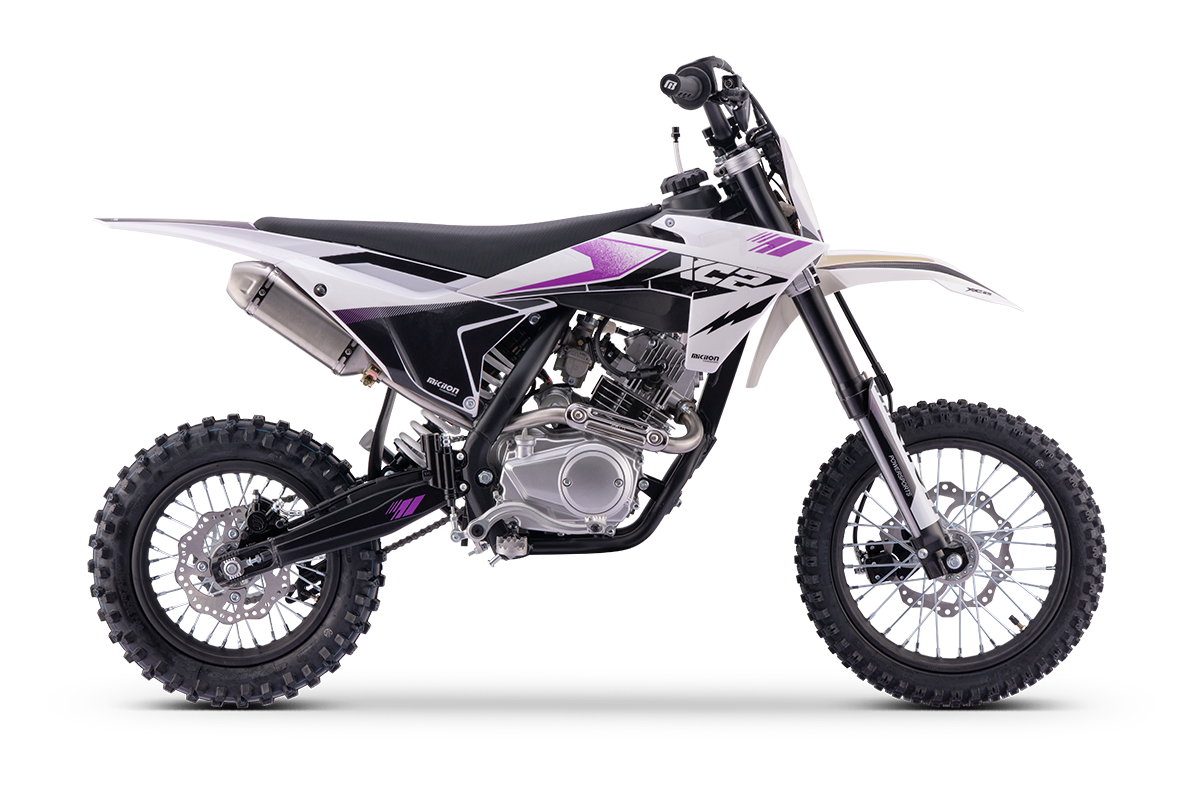

XC2

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Air Cooling
Displacement124 cm2
Bore And Stroke54 mm x 54 mm
Compression Ratio9.0:1
Maximum Power6.3 KW @ 7500 r/min
Maximum Torque8.8 NM @ 5500 r/min
CarburetorPE24
IgnitionCDI
Start SystemElectric Start

· Chassis

Front Shock AbsorberInverted Double Adjustable
Rear Shock AbsorberSingle Adjustable
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires60/100-17
Rear Tires80/100-14

· Dimensions / Capacity

LxWxH1610x720x1040 mm
Wheelbase1140 mm
Seat Height740 mm
Ground Clearance265 mm
Gear Ratio13:45
Fuel Tank Capacity3 L
Maximum Load Capacity50 kg
40HQ150 Units
