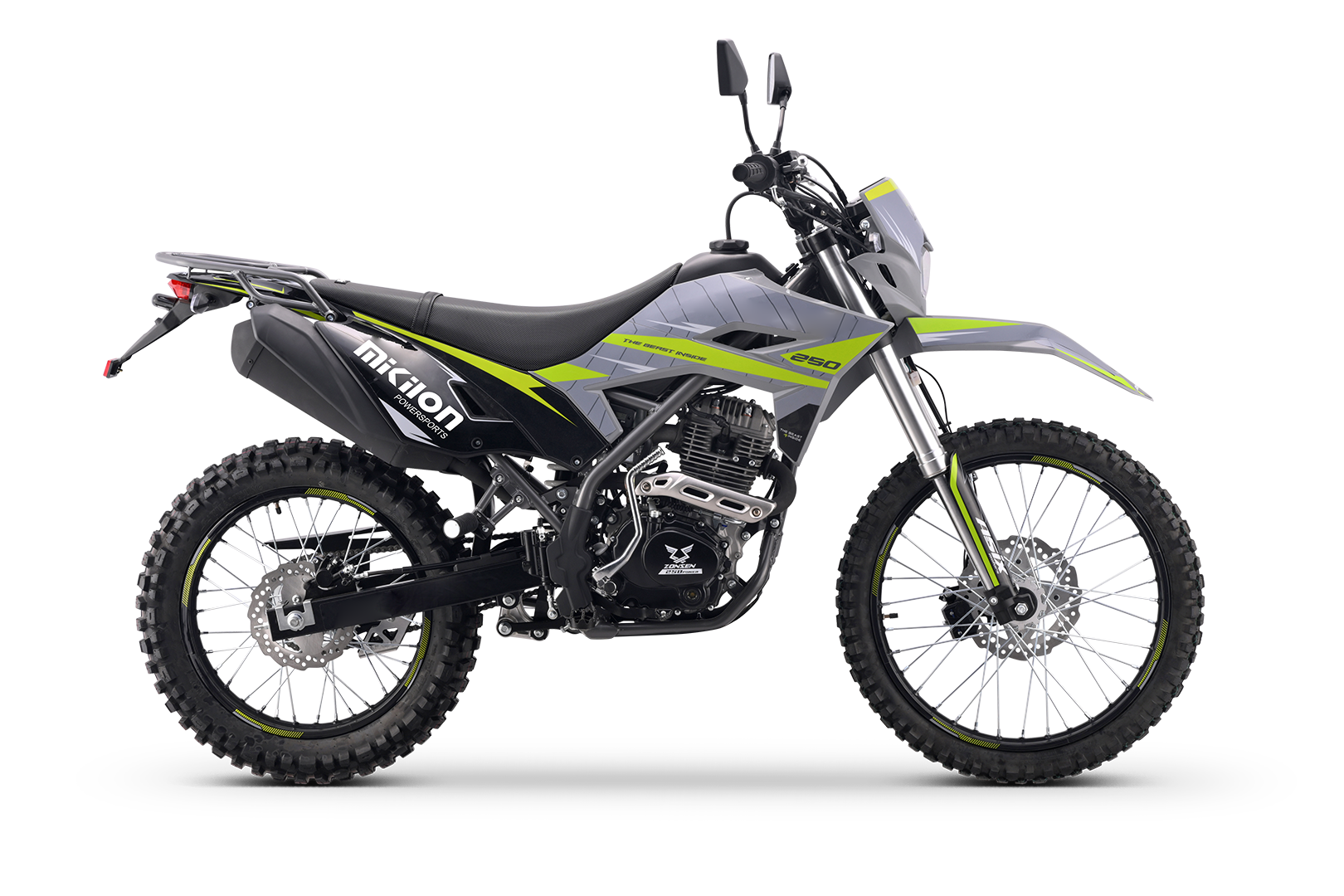

DS02 230

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Air Cooling
Displacement223 cm3
Bore And Stroke65.5 mm x 62.2 mm
Compression Ratio9.3-9.9
Maximum Power12 KW @ 7000 r/min
Maximum Torque17.5 NM @ 5500 r/min
CarburetorPZ30
IgnitionCDI
Start SystemElectric Start

· Chassis

Front Shock AbsorberInverted Non-Adjustable
Rear Shock AbsorberBuilt-In Airbag Non-Adjustable
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires80/100-21
Rear Tires120/90-18

· Dimensions / Capacity

LxWxH2100x830x1340 mm
Wheelbase1365 mm
Seat Height850 mm
Ground Clearance245 mm
Gear Ratio13:45
Fuel Tank Capacity10 L
Net Weight118.8 kg
Maximum Load Capacity75 kg
40HQ99 Units
