Hammer 200A

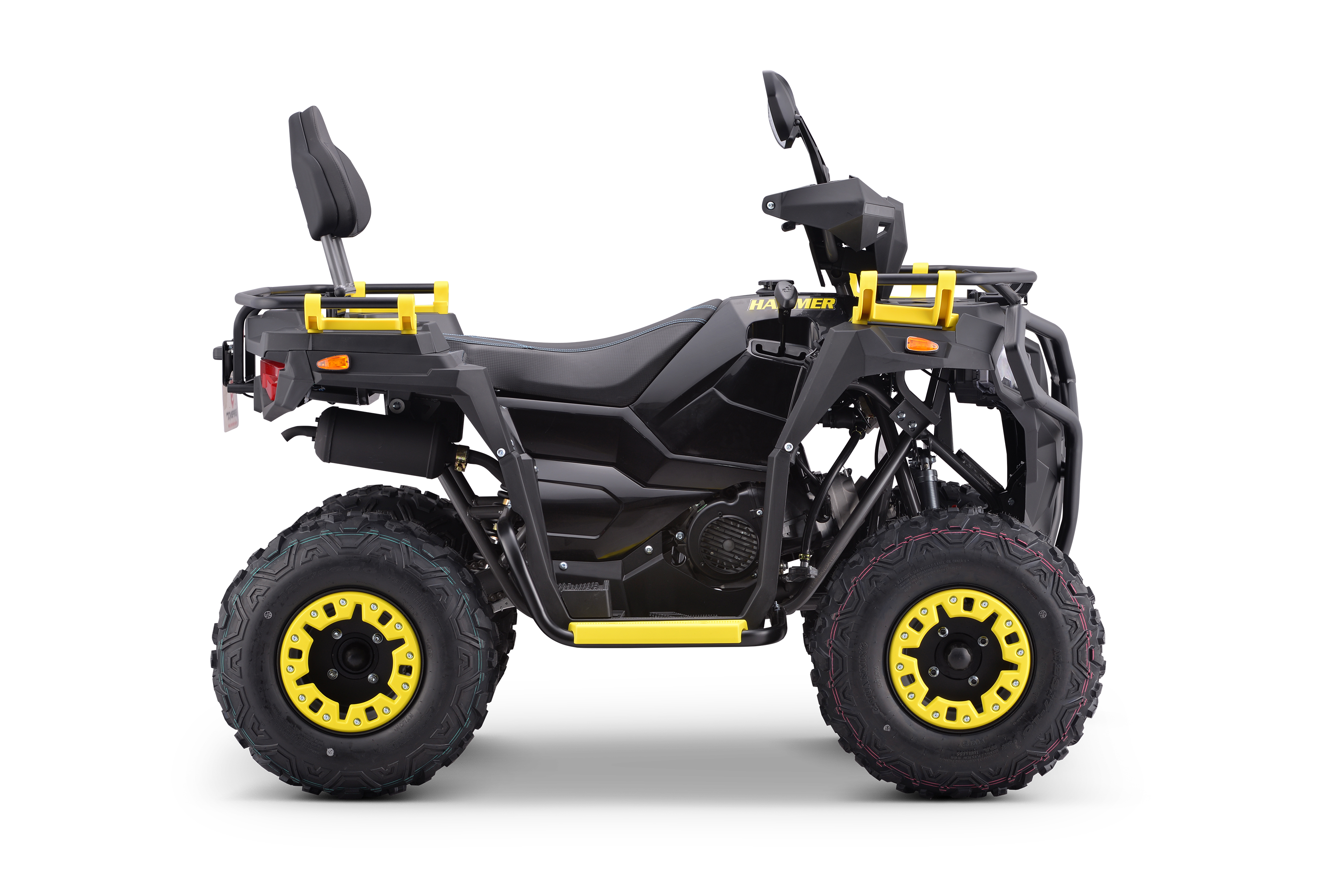

The Hammer 200A is a lightweight utility ATV powered by a stable 196cc engine. Hydraulic suspension, wide tires, and a reliable braking system allow confident riding on rural roads, field paths, and daily transport tasks. Simple and durable in construction, it’s ideal for family use, light-duty work, and cost-effective all-around utility.

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Oil Cooling
Displacement177.3 cm3
Bore And Stroke62.5 mm x 57.4 mm
Compression Ratio10:1
Maximum HorsePower10 HP @ 7500 r/min
Maximum Torque11 NM @ 6000 r/min
Fuel SupplyCarburetor
Start SystemElectric Start
TransimissionChain Drive

· Chassis

Front SuspensionDual A Arms Independent Suspension
Rear SuspensionSwing Arm
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires23x7-10
Rear Tires22x10-10

· Dimensions / Capacity

LxWxH1715x1055x1155 mm
Wheelbase1150 mm
Ground Clearance260 mm
Maximum Speed60 km/h
Net Weight176 kg
Fuel Tank Capacity8.5 L
Maximum Load Capacity125 kg
40HQ42 Units
