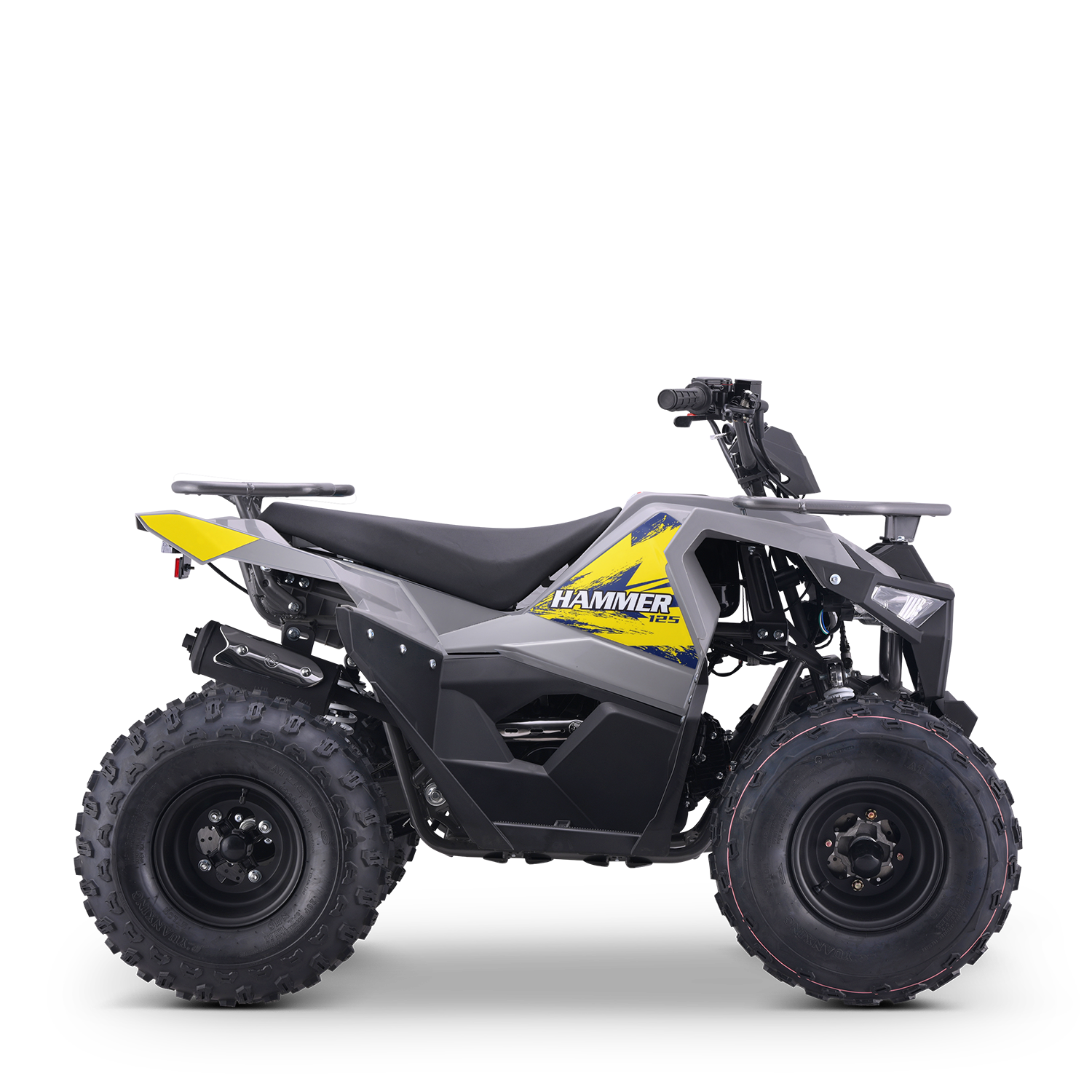

Hammer 125

  • Performance features
  • Parameters
  • Accessories

Parameters

· Engine

Engine Type1-Cylinder,4-Stroke,Air-Cooling
Displacement123.67 cm3
Bore And Stroke54 mm x 54 mm
Compression Ratio9.0:1
Maximum HorsePower8.4 HP @ 7500 r/min
Maximum Torque8.8 NM @ 5000 r/min
Fuel SupplyCarburetor
Start SystemElectric Start
TransimissionChain Drive

· Chassis

Front SuspensionDual A Arms Independent Suspension
Rear SuspensionSwing Arm
Front BrakeHydraulic Disc Brake
Rear BrakeHydraulic Disc Brake
Front Tires18x7-8
Rear Tires18x9-8

· Dimensions / Capacity

LxWxH1430x965x1950 mm
Wheelbase970 mm
Ground Clearance180 mm
Maximum Speed60 km/h
Net Weight109 kg
Fuel Tank Capacity7 L
Maximum Load Capacity82 kg
40HQ92 Units
