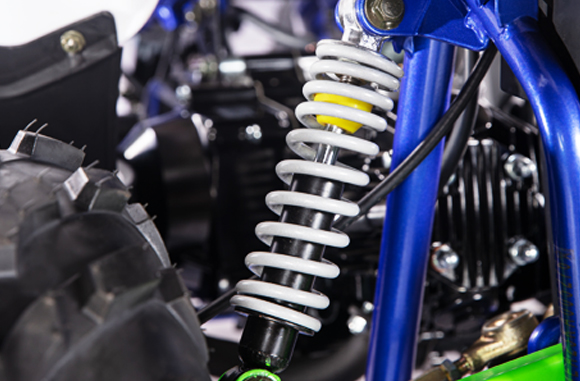

Single A-arm front suspensionPENTORA 110 adopts a single A-arm structure, which is flexible in control and stable in turning, ensuring young riders can control freely in a safe situation.

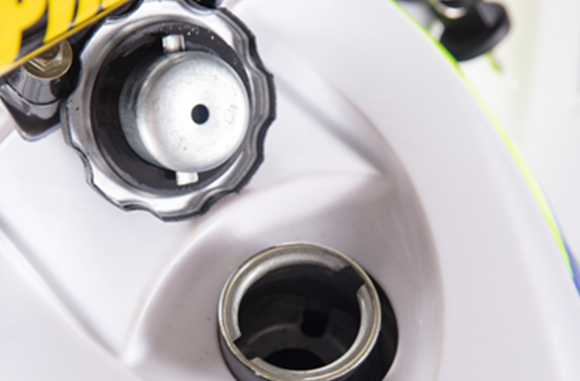

Fuel tankThe 1.3-gallon fuel tank ensures that riders can enjoy the moment of passion.

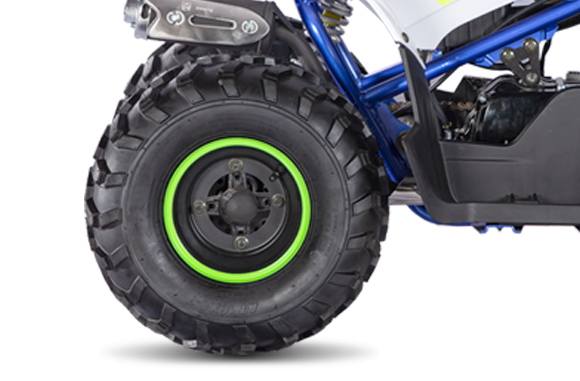

Wheels PENTORA 110 is equipped with front and rear 7-inch off-road tires, which can provide excellent traction and performance in different terrains, The 4-hole mounting and fixing method make the tires more reliable.

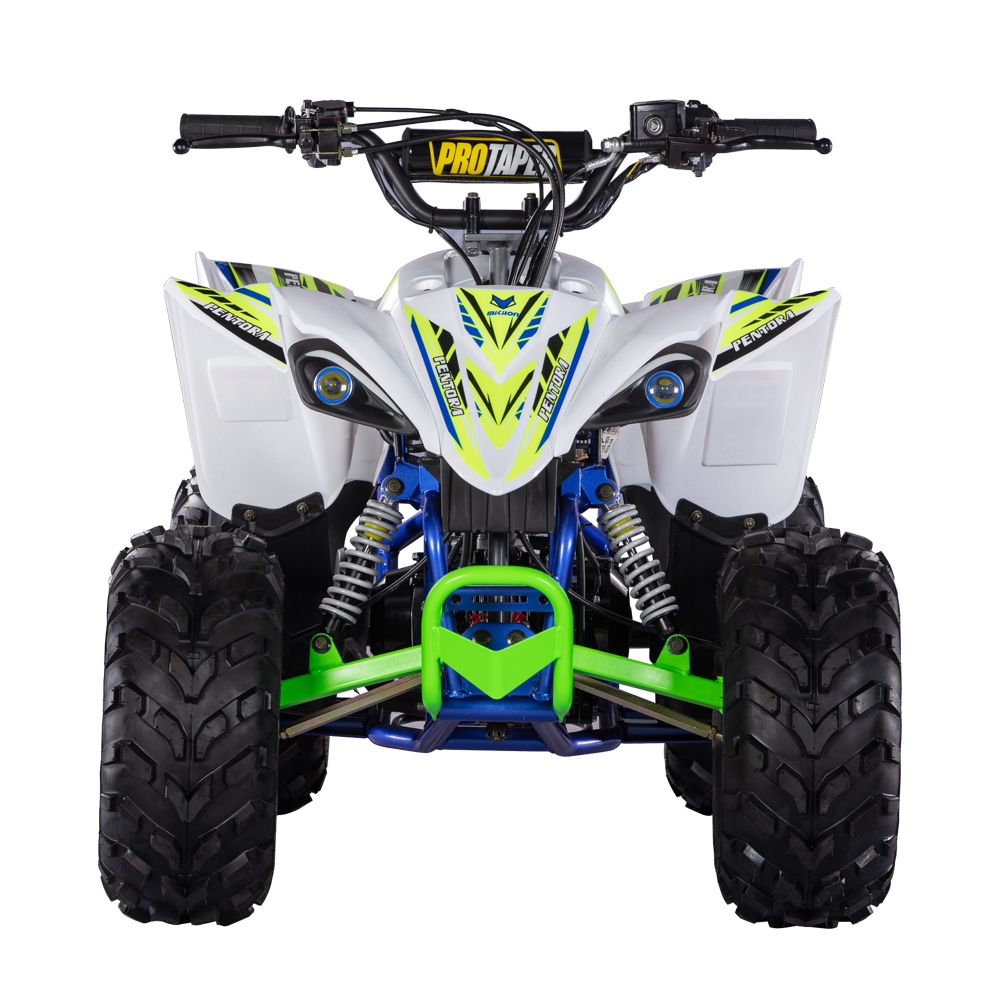

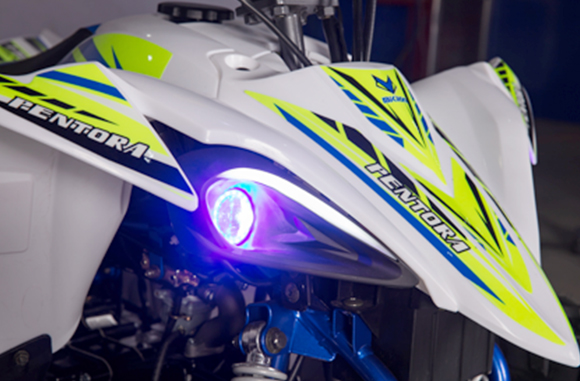

Dual halogen front headlightsThe dual headlights in the shape of ''angeleyes''are simple, beautiful and highly recognizable.

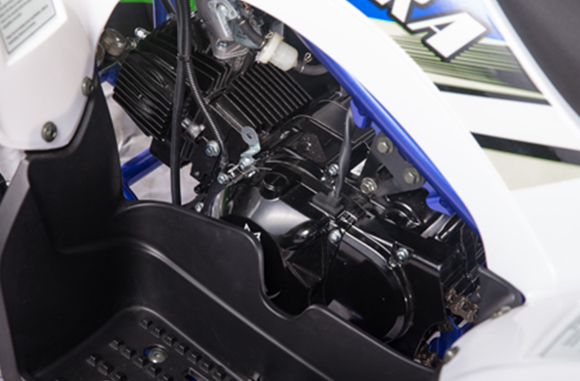

Engine PENTORA 110 is equipped with a 5.0HP automatic transmission engine that has been approval in the market for many years, allowing young riders to fully enjoy the fun of outdoor sports.
SPECIFICATIONS
| Engine type | LX152FMH Single cylinder, Four-stroke |
| Cooling | Air |
| Bore and stroke | 52.4x49.5mm |
| Cylinders displacement | 107ml |
| Compression ratio | 9.1:1 |
| Carburetor | PZ19 |
| Max power | 5.0HP/7500rpm |
| Max torque | 7.5N.m/5500rpm |
| Clutch | Wet multi-piece+automatic centrifugal |
| Transmission | Chain drive |

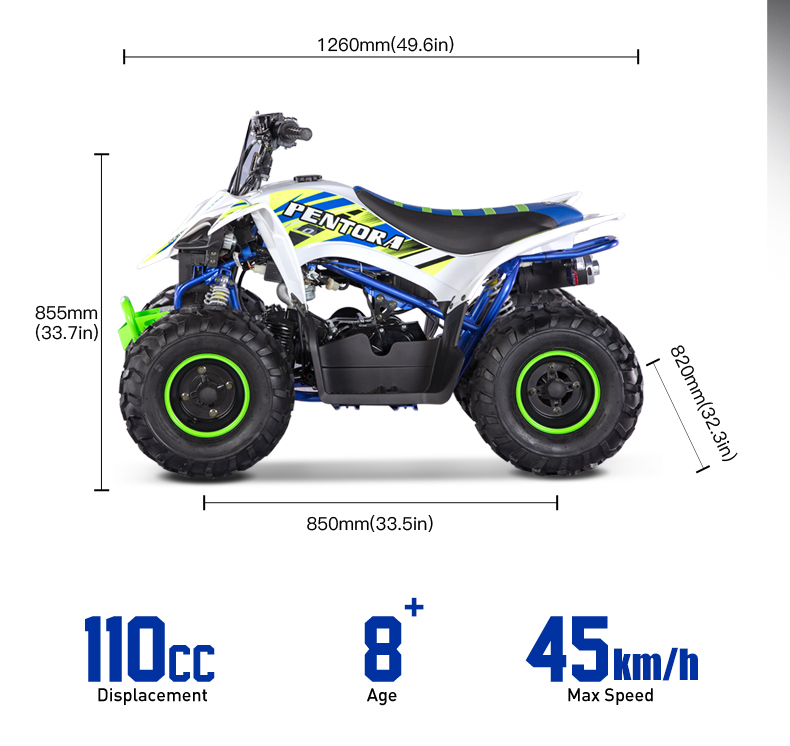

| Vehicle size (LxWxH) | 1260x820x855mm (49.6x32.3x33.7in) |
Wheelbase | 850mm (33.5in) |
Seat height | 620mm (24.4in) |
Ground clearance | 95mm (3.74in) |
Turning radius | 1400mm (4.6feet) |
Box size (LxWxH) | 1270x770x650mm (50x30.3x25.6in) |
Dry weight | 90kg(198.4Ib) |
Box gross weight | 109kg(240.3Ib) |
| Fuel capacity | 5L (1.3gal) |
| Payload capacity | 60kg(132.3lb) |
| Person capacity | 1 |
Front suspension | Hydraulic damping shock absorber |
| Rear Suspension | Hydraulic damping shock absorber |
| Front brakes | Drum brake |
| Rear brakes | Hydraulic disc brake |
| Front tires | 16x8-7; 9 PSI |
| Rear tires | 16x8-7; 9 PSl |
